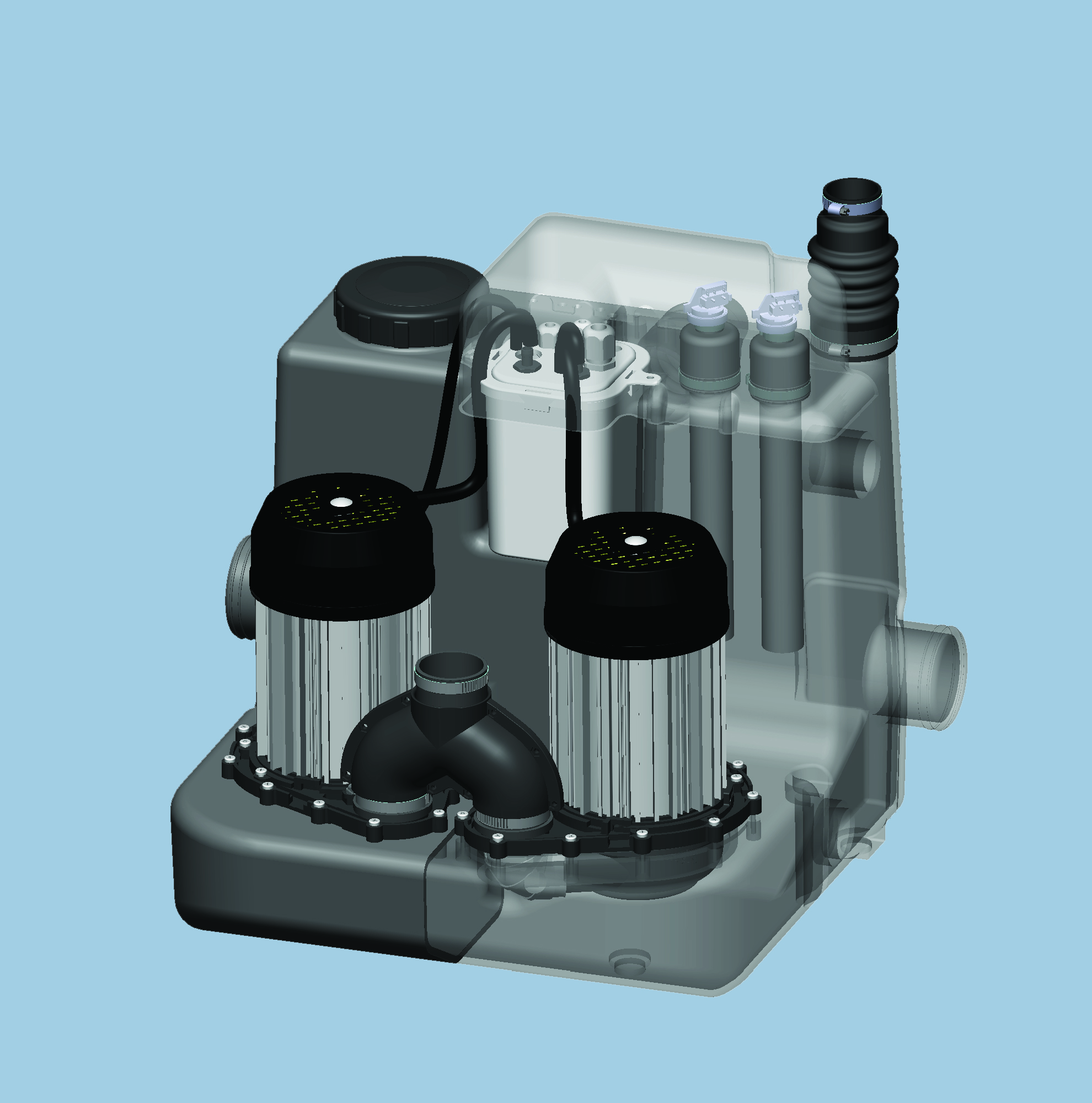

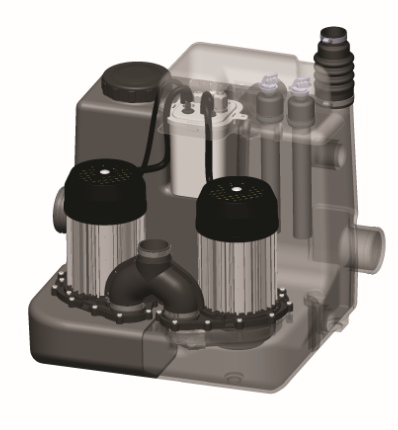

Sanicom 2
Ability to pump grey water up to 90°C.
• Pumping stations for grey water.
• Easy installation without soil disbursement.
• 2 low side inlets Ø ext. 80
(connections possible in Ø ext. 50 or Ø ext. 40).
• Removable motors and level sensors
for ease of maintenance.
Compact design.
• Ability to pump grey water up to 90°C.
• Supplied with remote control unit.
• 2 alternating pumps for more intensive use.
• Easy access and maintenance.
• 2-pump lifting station
• Remote control unit (2 m cable)
• 2 built-in check valves
| Tank volume | 34 L |
|---|---|
| Ø of ext. inlets | Mark |
| 1 | 40, 50 and 80 mm |
| Discharge diameter ext. | 50 mm |
| Ventilation diameter | 50 mm |
| ON/OFF level | 145 mm / 60 mm |
| Shower tray height | 25 cm minimum |
| Maximum temperature of incoming wastewater |
90°C intermittently (max. 5 min)) |
| Possible connections | Grey water from bathroom (without toilet), kitchen, laundry |
| Wheel type | Multi-channel |
| Solid handling capacity | 8 mm |
|---|---|
| Voltage | 220-240 V/50 Hz |
| Power rating | 2 x 1,500 W |
| Max. absorbed intensity | 13 A |
| Weight (including accessories) | 26 kg |
| Protection rating (IP) | IPX4 |
| Electrical class | I + Option to connect an external alarm |
| Max. flow | 6 m3/hr |
|---|---|
| Max. height (Q = 0 m3/hr) | 15 m |
| Max. recommended height | 10 m |
